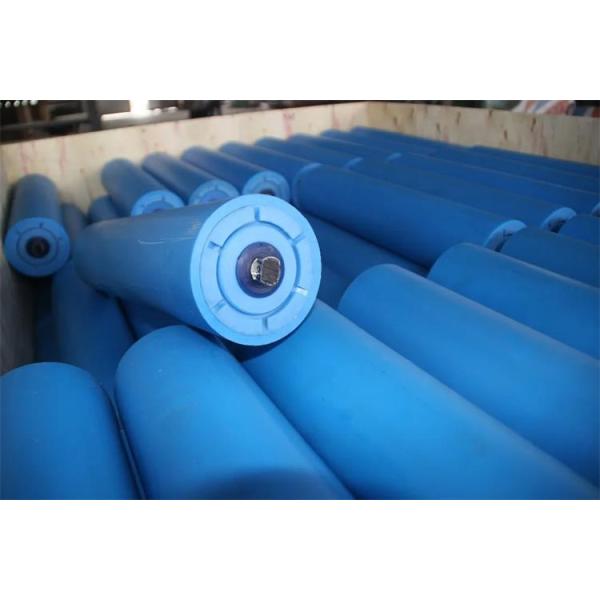

Material Handling Equipment UHMWPE Plastic Conveyor Belt Roller
polyethylene plastic belt conveyor roller is a high-tech product, which consists of uhmwpe pipe,metal bearing, metal shaft , plastic bearing housing , sealing ring and so on . Compared with metal roller , uhmwpe plastic roller has many obvious advantages in performance.
Plastic UHMW conveyor rollers Features:
Durable for over 3 years
Withstand 30,000 hours of rotation, super long life
Better than metal rollers
Lightweight silenced rain resistance reduces belt wear
Product Specification:
Roller for Conveyor market well-known brands, a variety of standard and non-standard roller service nearly a thousand large customers.
| Outer Diameter D1(mm) | Shaft Diameter D2 (mm) | Customized(mm) | Bearing Type (HRB/LYC/SKF) | Bearing size (mm) |
| Dia76 | Dia20 | Custom Length: 150-2000
L1,L2,L3,L4,L5 Spindle Head Custom: Milling, Punch, Thread | 6204 | 20*47*14 |
| Dia89 | Dia20 | 6204 | 20*47*14 |
| Dia102 | Dia20 | 6204 | 20*47*14 |
| Dia25 | 6205 | 25*52*15 |
| Dia108 | Dia20 | 6304 | 25*52*15 |
| Dia25 | 6205 | 25*52*15 |
| Dia114 | Dia25 | 6205 | 25*52*15 |
| Dia127 | Dia25 | 6305 | 25*62*17 |
| Dia30 | 6306 | 30*72*19 |
| Dia133 | Dia25 | 6305 | 25*62*17 |
| Dia140 | Dia25 | 6305 | 25*62*17 |
| Dia152 | Dia35 | 6307 | 35*80*21 |
| Dia159 | Dia35 | 6307 | 35*80*21 |
UHMWPE conveyor belt roller has a novel structure, reliability seal, and advanced material selection. Rollers and housing are made of ultra-High Molecular Weight Polyethylene (UHMWPE) which has anti-friction self-lubrication, impact resistance, anti-adhesion, and anti-corrosion, resistant to aging, and other characteristics.
Characteristics of plastic Conveying roller:
1. High-wear resistance is seven times the wear resistance of steel and four times that of PTFE.
2. High impact resistance two times impact resistance than PC, five times than ABS.
3. Self-lubrication is the same as PTFE, better than steel and brass appended lubricating oil.
4. Anti-corrosion resistance, stable chemicals property and can endure the corrosion of all kinds of corrosive medium and organic solvent in certain rang of temperature and humidity.
5. Non-sticking the smooth surface of the product hardly affixes other material.
6. Low-temperature resistance in (-196), it still has the prolongation and high tensile strength.
7. Non-toxic and clean property.
Application:
PE conveyor roller is widely used in the original dock transporting places where dust is bigger and the environment has high corrosive , such as mining , power , steel , stone materials factory , cement and coking plant , coal washing factory , salt plant , alkali plant , fertilizer factory , dock and so on .
Company Profile:
Tangyin Taixing Engineering Plastic Co., Ltd. is located in Tengfei road, Yigou town, Tangyin county, Henan. We have gained many professional certificates with 20 years of experience.
We are always dedicated to Providing high-performance goods and Producing new products for our customers. Mainly produce and sell UHMWPE sheet, UHMWPE Liner Sheet,Conveyor Roller ,Cutting board, Outrigger pad, ground mat. Our products sell well in domestic and international markets, such as the United States,Australia, Singapore, Pakistan, Thailand,South America etc, and are favorably appraised by clients.
